The Project.

Historic sports group Lovat Shinty will benefit from low-cost heating and hot water for its new community pavilion, following the installation of two Vaillant air source heat pumps. The new facility, including showering areas, was almost entirely funded by charities and European funding groups, and, as the Lovat Shinty Club is not-for-profit, keeping future running costs low was a core consideration. With this in mind, the club turned to local renewable heating experts, Ri Cruden, who designed the most energy-efficient and cost-effective system possible. Vaillant Air-to-water heat pumps were selected to provide heating and hot water and are a highly efficient solution as they safeguard against fluctuations in oil and LPG prices that can leave owners vulnerable to ever-rising energy bills.

Lovat Shinty Club is not-for-profit, keeping future running costs low was a core consideration.

The Works.

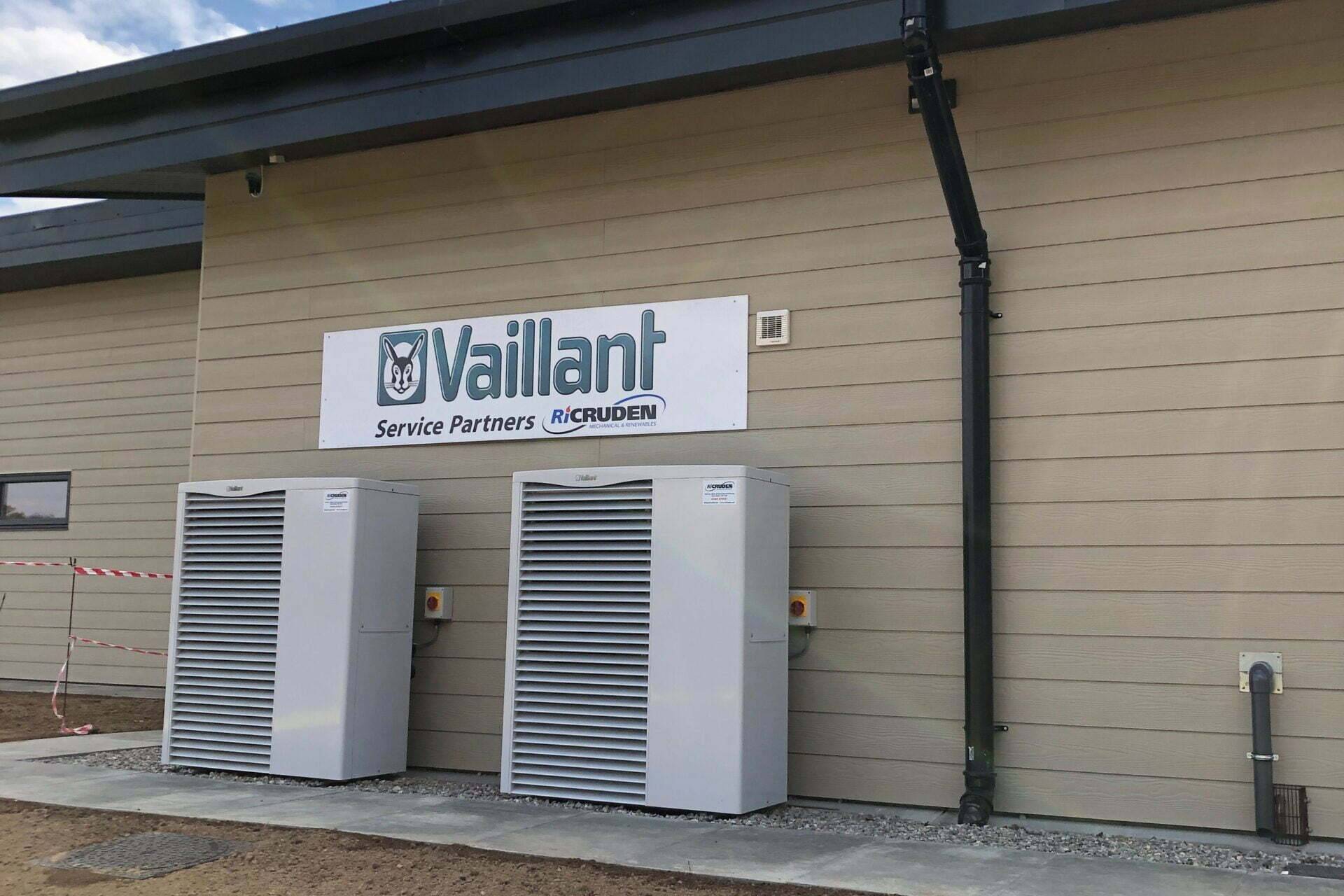

The pavilion system utilises two Vaillant aroTHERM air source heat pumps in cascade with a 200 litre buffer tank for an efficient and reliable supply of heating and hot water. This system is complemented by the Vaillant VRC 700 weather compensating system control which intelligently communicates with all Vaillant appliances, and further contributes to the efficiency of the system. Underfloor heating was installed throughout to provide efficient heating to the building and shower areas. The biggest challenge in this project was being able to supply all 4 changing room shower facilities with hot water. A cold water storage tank and boost pump station was installed and commissioned by Ri Cruden to provide pressurised hot water at all times.



The pavilion system utilises two Vaillant aroTHERM air source heat pumps in cascade with a 200 litre buffer tank for an efficient and reliable supply of heating and hot water.

“As a not-for-profit organisation, cost is a major factor for us, but equally, for a sports pavilion, reliable heat and hot water is a must. Vaillant worked with us, and with the installers at Ri Cruden, to design and install a renewable system which will not only keep running costs low, but effectively meet our heating and hot water needs. We are delighted with the support and service we received from Vaillant throughout the project.”

John MacRitchie / Chairman, Lovat Shinty Club

“The Lovat Shinty community pavilion required dependable heat and hot water which could run at an affordable rate. We recommended our aroTHERM air-to-water heat pump as it ticked all the boxes for ease of siting, reliability and energy efficiency – as well as the sustainability benefits inherent to this technology. By working closely with Ri Cruden we were able to design a system which will meet the needs of the Club for years to come.+

John Bailey / Vaillant

Key Facts

Building Type:

Community Pavilion

Requirement:

Heating and hot water for pavilion and changing facilities

Technology Used:

2 x 15kW aroTHERM air source heat pumps in cascade
1 x Heat exchanger module to reduce the amount of glycol required in the large heating system.
1 x 200 litre buffer tank for heating
2 x 500 litre hot water cylinders
VRC 700 system control

Installer:

Ri Cruden Ltd.

Client:

Lovat Shinty Club
